Your Heat Sink Solution
Air cooling, water cooling from design to production with thermal simulation service
Air cooling, water cooling from design to production with thermal simulation service
| NO. | Width(mm) | Height(mm) | Weight(kg/m) | Preview | Notes |

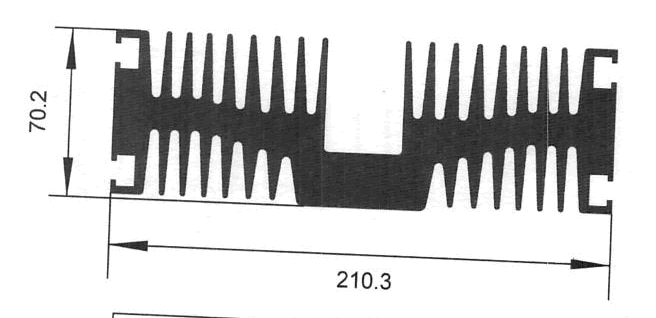

| WD-04423 | 210.300 | 70.200 | 21.200 |  |
|

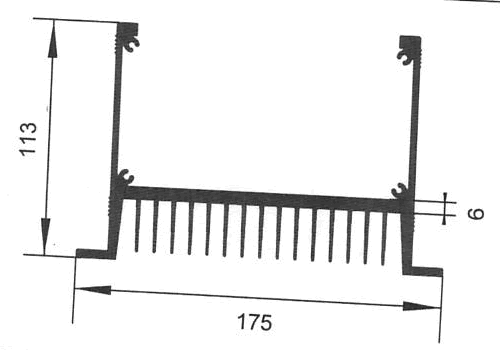

| WD-04424 | 175.000 | 113.000 | 7.100 |  |
|

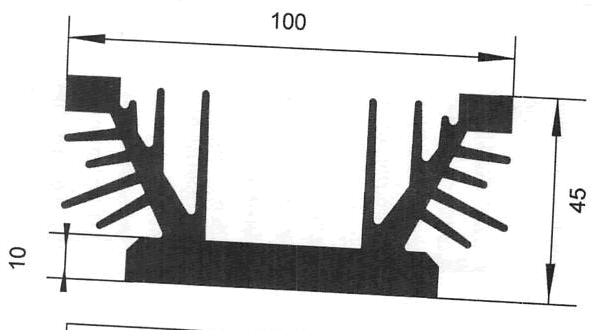

| WD-04425 | 100.000 | 45.000 | 4.500 |  |
|

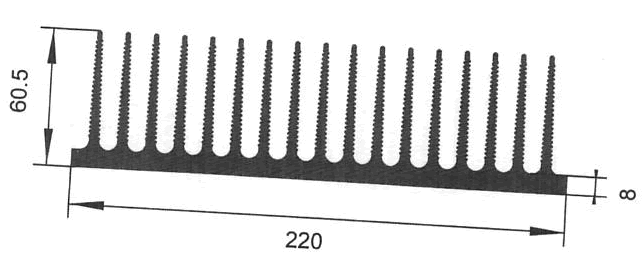

| WD-04426 | 220.000 | 60.500 | 12.900 |  |
|

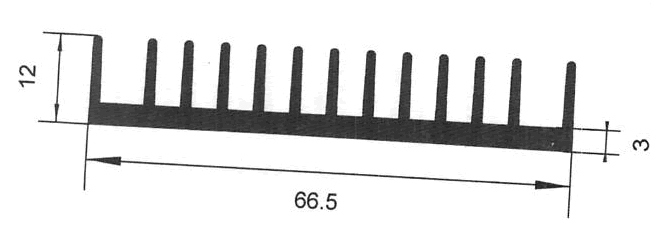

| WD-04427 | 66.500 | 12.000 | 1.000 |  |
|

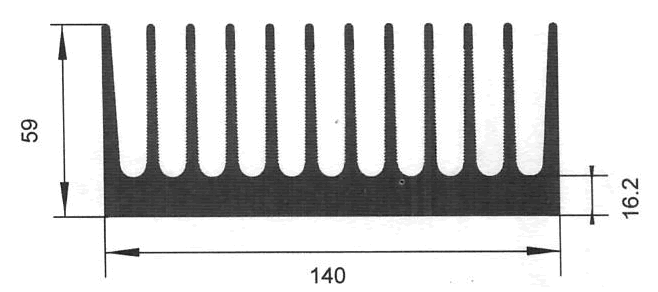

| WD-04428 | 140.000 | 59.000 | 9.500 |  |
