Your Heat Sink Solution
Air cooling, water cooling from design to production with thermal simulation service
Air cooling, water cooling from design to production with thermal simulation service
| NO. | Width(mm) | Height(mm) | Weight(kg/m) | Preview | Notes |

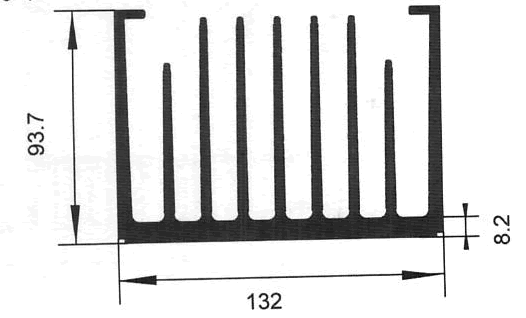

| WD-04417 | 132.000 | 93.700 | 10.500 |  |
|

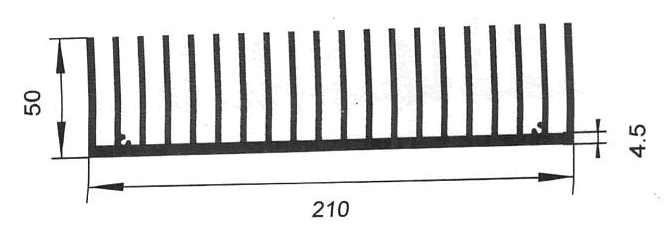

| WD-04418 | 210.000 | 50.000 | 8.300 |  |
|

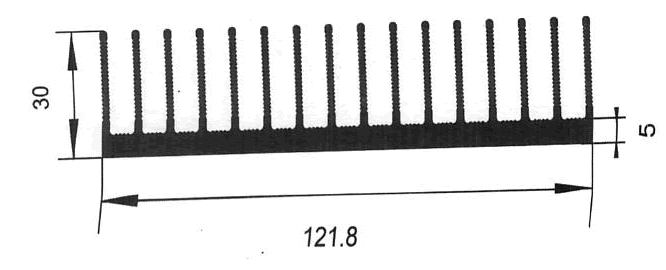

| WD-04419 | 121.800 | 30.000 | 3.400 |  |
|

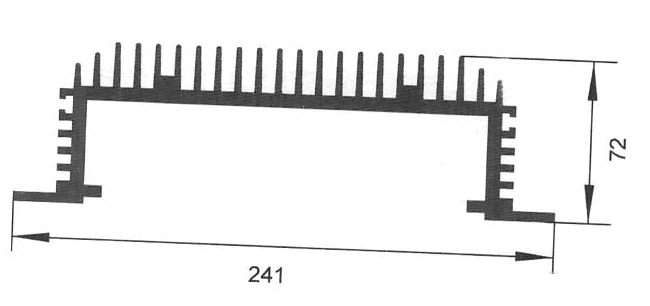

| WD-04420 | 241.000 | 72.000 | 9.000 |  |
|

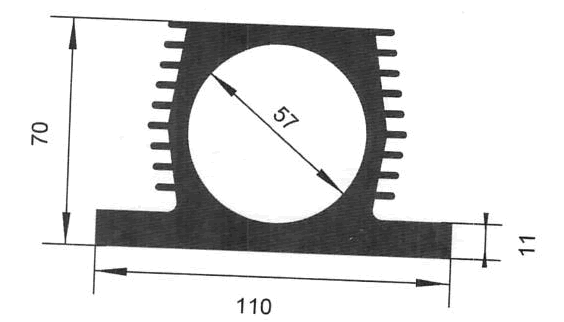

| WD-04421 | 110.000 | 70.000 | 7.100 |  |
|

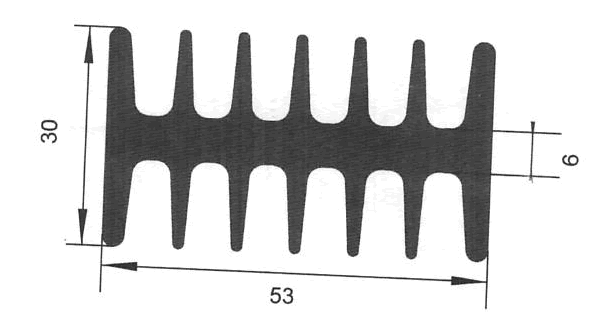

| WD-04422 | 53.000 | 30.000 | 2.100 |  |
