Your Heat Sink Solution
Air cooling, water cooling from design to production with thermal simulation service
Air cooling, water cooling from design to production with thermal simulation service
| NO. | Width(mm) | Height(mm) | Weight(kg/m) | Preview | Notes |

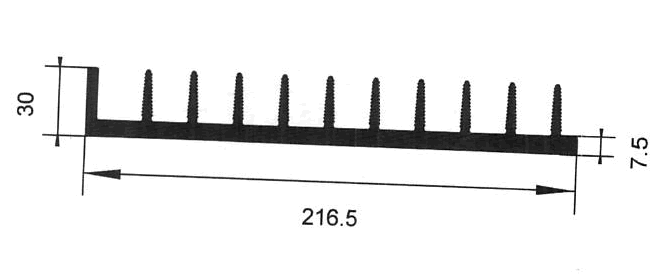

| WD-04411 | 216.500 | 30.000 | 6.800 |  |
|

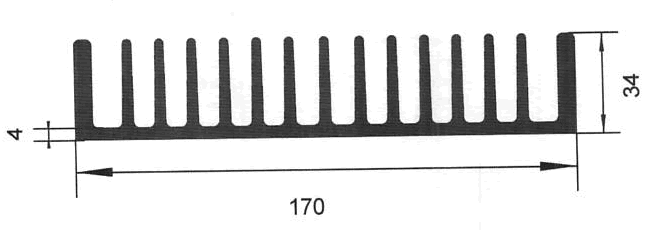

| WD-04412 | 170.000 | 34.000 | 6.500 |  |
|

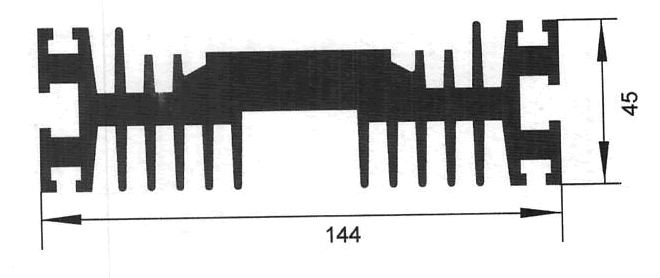

| WD-04413 | 144.000 | 45.000 | 2.900 |  |
|

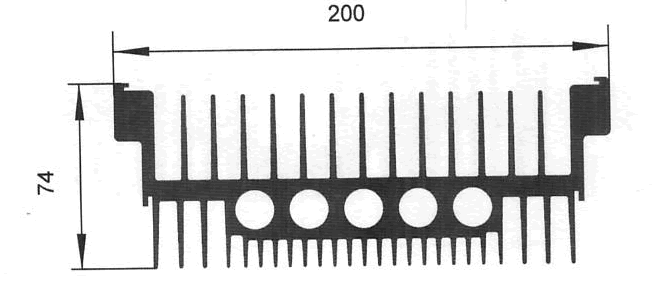

| WD-04414 | 200.000 | 74.000 | 12.300 |  |
|

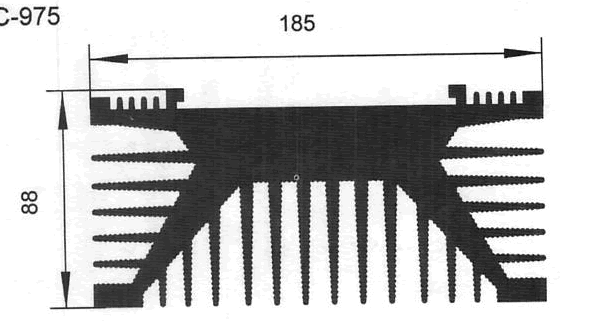

| WD-04415 | 185.000 | 88.000 | 22.200 |  |
|

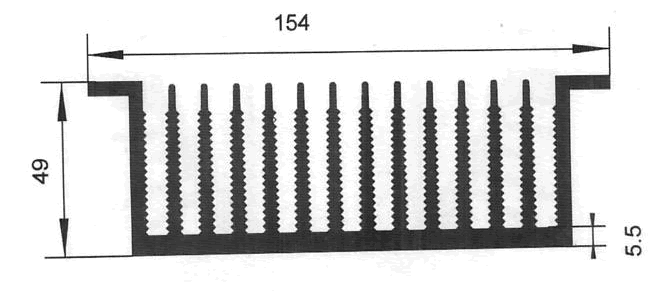

| WD-04416 | 154.000 | 49.000 | 7.700 |  |
