| NO. | Width(mm) | Height(mm) | Weight(kg/m) | Preview | Notes |

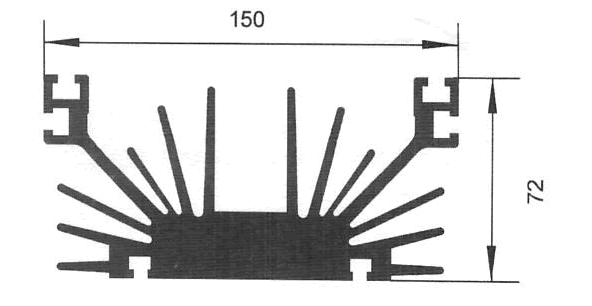

| WD-04279 | 150.000 | 72.000 | 11.000 |  |
|

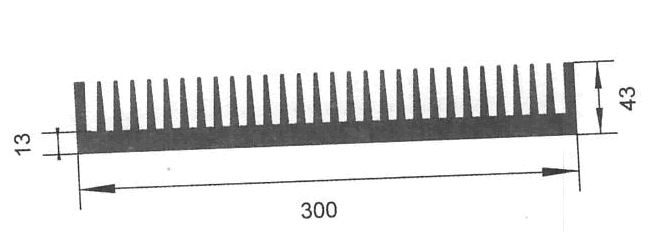

| WD-04280 | 300.000 | 43.000 | 20.000 |  |
|

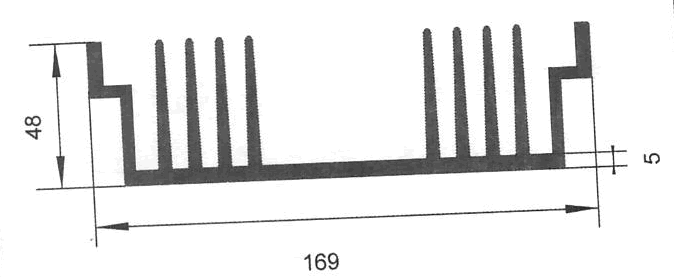

| WD-04281 | 169.000 | 48.000 | 6.400 |  |
|

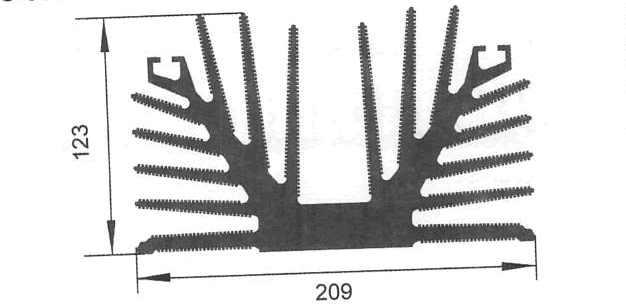

| WD-04282 | 209.000 | 123.000 | 25.500 |  |
|

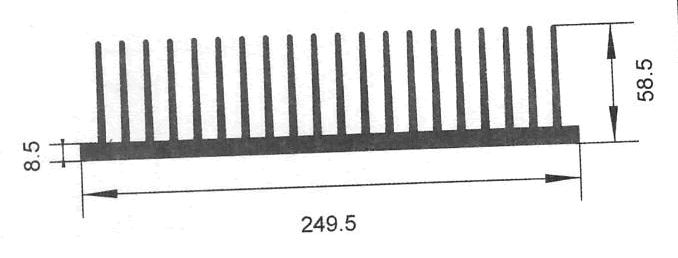

| WD-04283 | 249.500 | 58.500 | 17.000 |  |
|

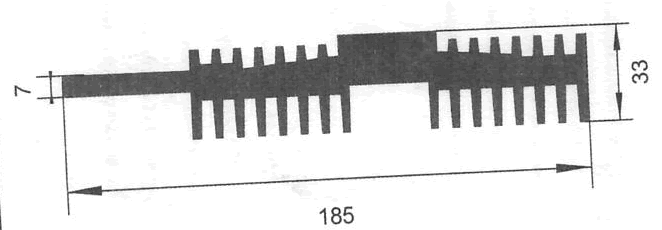

| WD-04284 | 185.000 | 33.000 | 8.200 |  |
