Your Heat Sink Solution
Air cooling, water cooling from design to production with thermal simulation service
Air cooling, water cooling from design to production with thermal simulation service
| NO. | Width(mm) | Height(mm) | Weight(kg/m) | Preview | Notes |

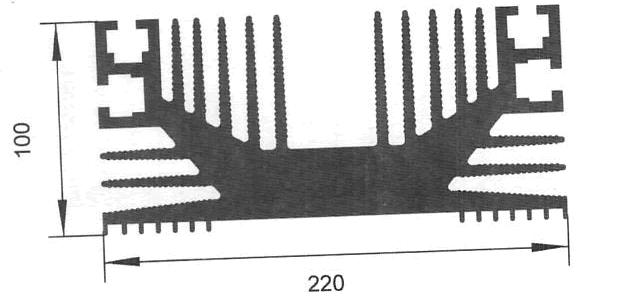

| WD-04267 | 220.000 | 100.000 | 30.000 |  |
|

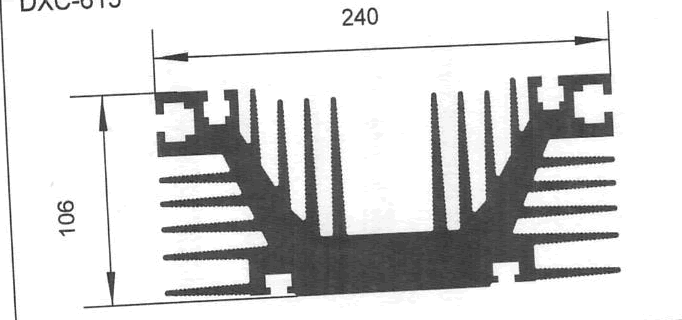

| WD-04268 | 240.000 | 106.000 | 31.000 |  |
|

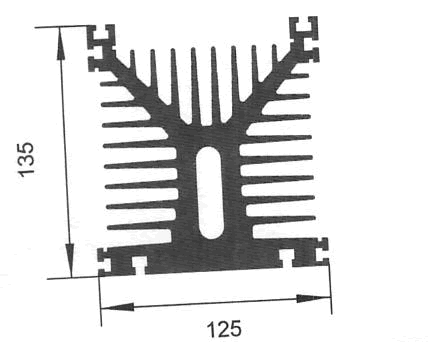

| WD-04269 | 125.000 | 135.000 | 21.000 |  |
|

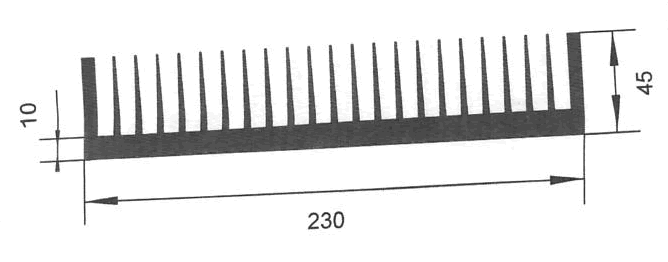

| WD-04270 | 230.000 | 45.000 | 11.400 |  |
|

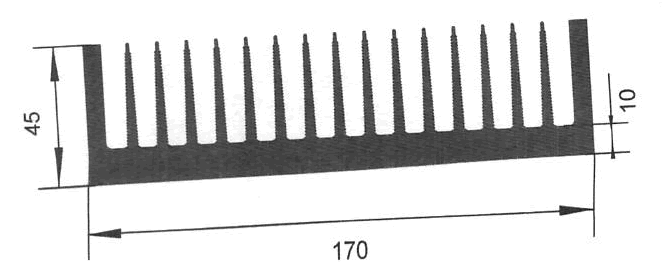

| WD-04271 | 170.000 | 45.000 | 9.300 |  |
|

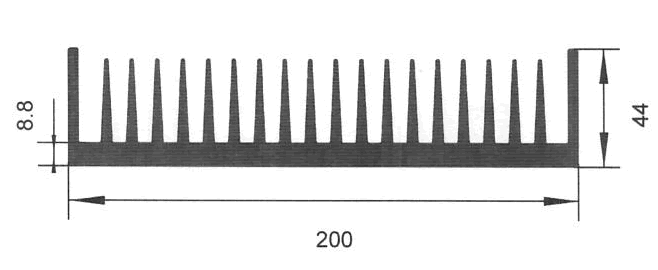

| WD-04272 | 200.000 | 44.000 | 11.500 |  |
