Your Heat Sink Solution
Air cooling, water cooling from design to production with thermal simulation service
Air cooling, water cooling from design to production with thermal simulation service
| NO. | Width(mm) | Height(mm) | Weight(kg/m) | Preview | Notes |

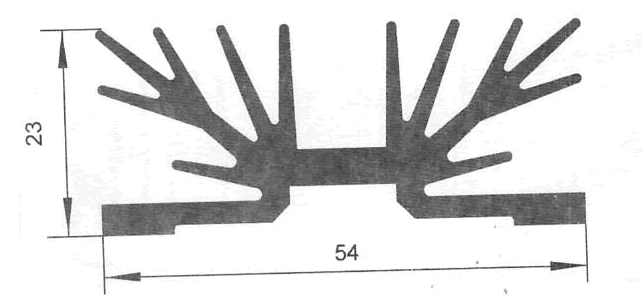

| WD-04231 | 54.000 | 23.000 | 1.100 |  |
|

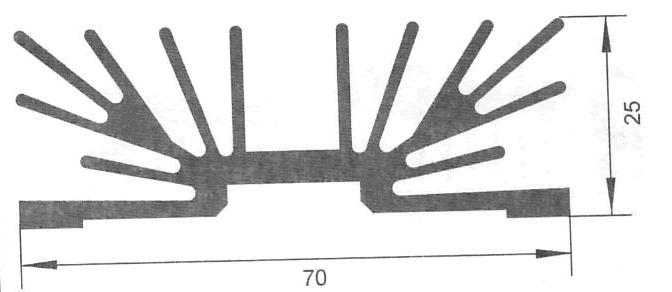

| WD-04232 | 70.000 | 25.000 | 1.600 |  |
|

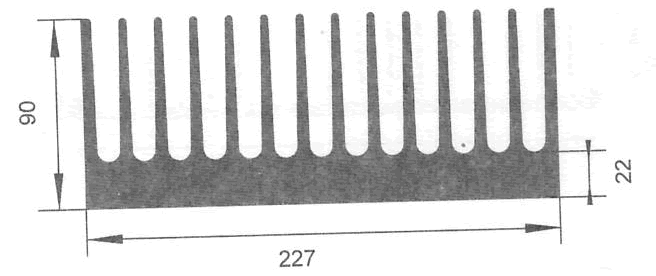

| WD-04233 | 227.000 | 90.000 | 28.000 |  |
|

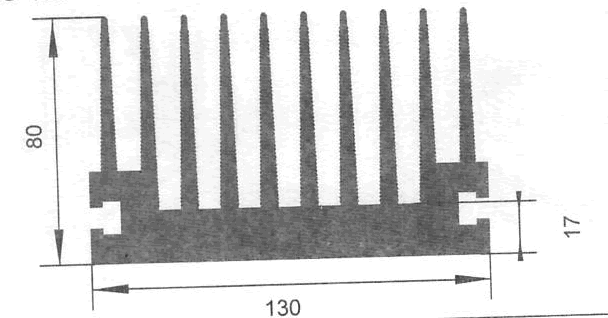

| WD-04234 | 130.000 | 80.000 | 15.000 |  |
|

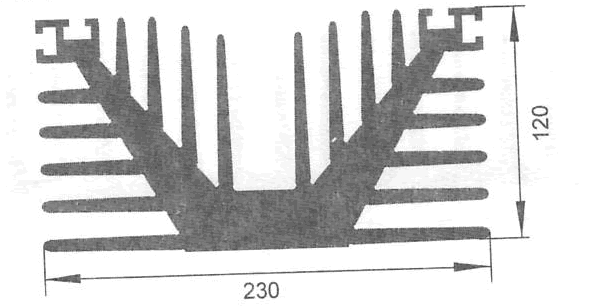

| WD-04235 | 230.000 | 120.000 | 37.000 |  |
|

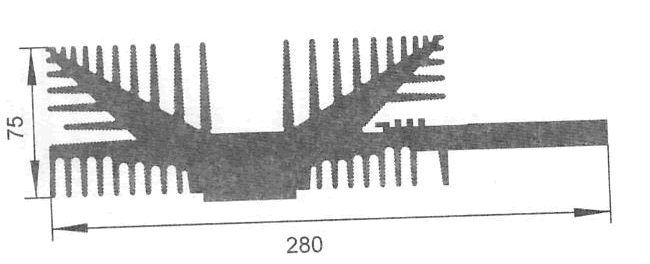

| WD-04236 | 280.000 | 75.000 | 24.100 |  |
