Your Heat Sink Solution
Air cooling, water cooling from design to production with thermal simulation service
Air cooling, water cooling from design to production with thermal simulation service
| NO. | Width(mm) | Height(mm) | Weight(kg/m) | Preview | Notes |
| WD-04195 | 320.000 | 13.000 | 12.200 |  |
|

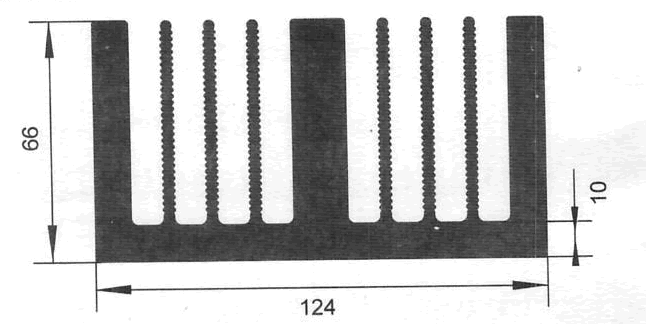

| WD-04196 | 124.000 | 66.000 | 11.500 |  |
|

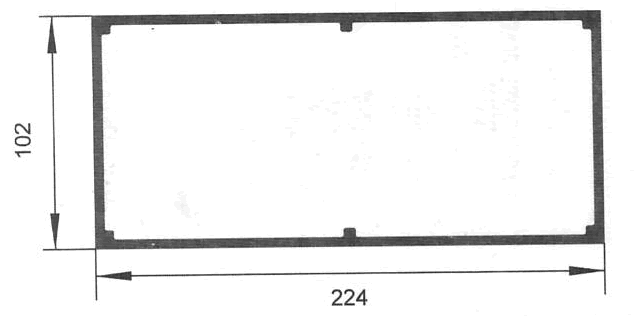

| WD-04197 | 224.000 | 102.000 | 7.300 |  |
|

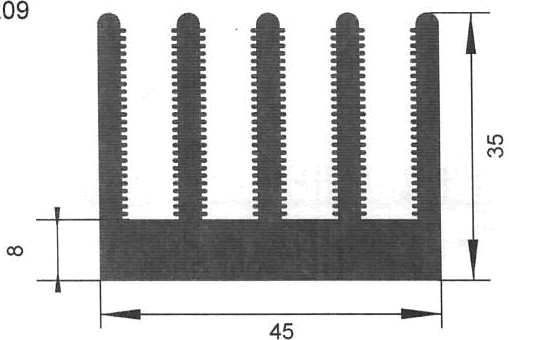

| WD-04198 | 45.000 | 35.000 | 6.400 |  |
|

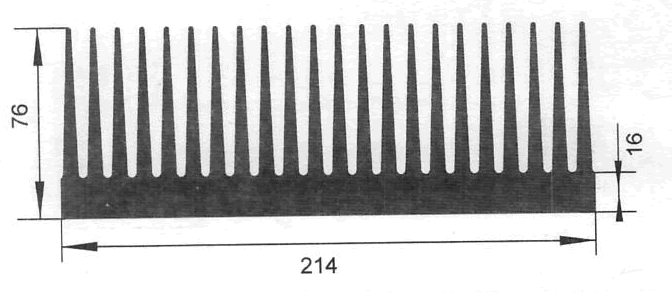

| WD-04199 | 214.000 | 76.000 | 23.500 |  |
|

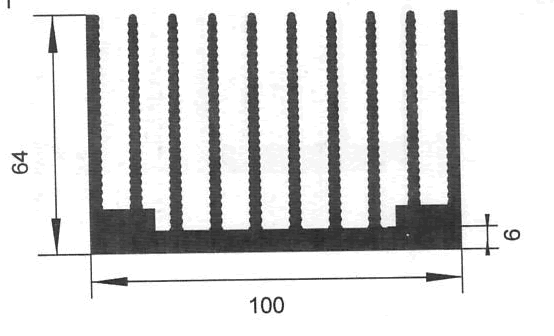

| WD-04200 | 100.000 | 64.000 | 6.500 |  |
