Your Heat Sink Solution
Air cooling, water cooling from design to production with thermal simulation service
Air cooling, water cooling from design to production with thermal simulation service
| NO. | Width(mm) | Height(mm) | Weight(kg/m) | Preview | Notes |

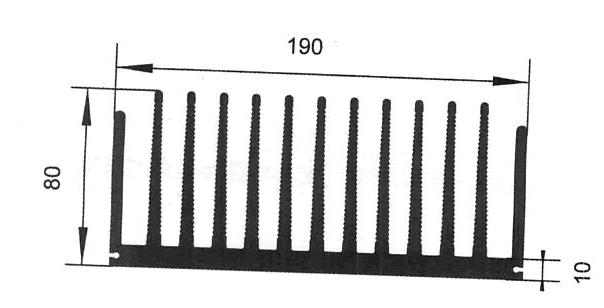

| WD-04165 | 190.000 | 80.000 | 16.000 |  |
|

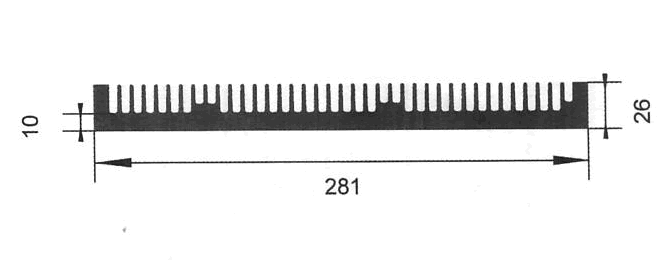

| WD-04166 | 281.000 | 26.000 | 12.500 |  |
|

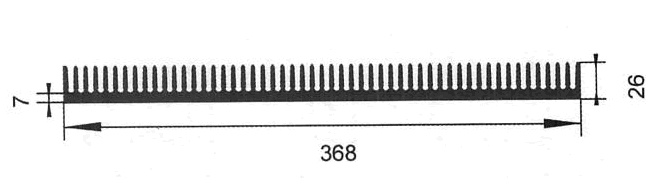

| WD-04167 | 368.000 | 26.000 | 15.200 |  |
|

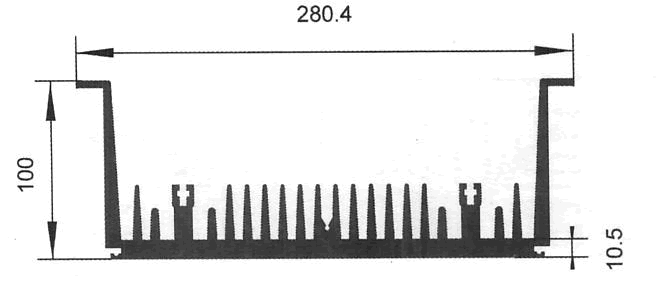

| WD-04168 | 280.400 | 100.000 | 16.900 |  |
|

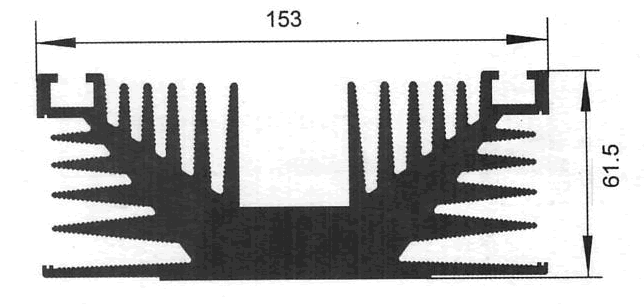

| WD-04169 | 153.000 | 61.500 | 12.300 |  |
|

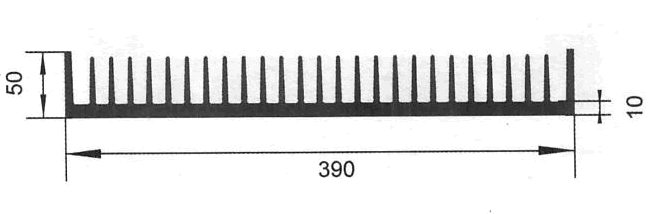

| WD-04170 | 390.000 | 50.000 | 20.600 |  |
