| NO. | Width(mm) | Height(mm) | Weight(kg/m) | Preview | Notes |

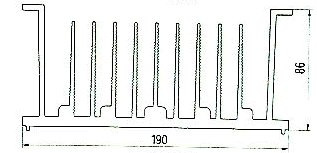

| WD-03823 | 190.000 | 86.000 | 11.100 |  |
|
| WD-03824 | 70 | 105 | 0.000 |  |
|

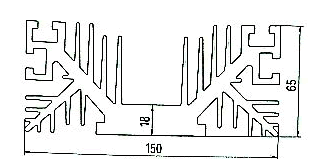

| WD-03825 | 150.000 | 65.000 | 11.200 |  |
|
| WD-03826 | 100 | 52 | 0.000 |  |
|

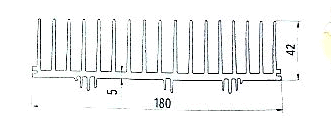

| WD-03827 | 180.000 | 42.000 | 6.520 |  |
|

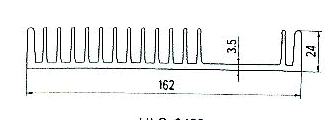

| WD-03828 | 162.000 | 24.000 | 3.630 |  |
