Your Heat Sink Solution
Air cooling, water cooling from design to production with thermal simulation service
Air cooling, water cooling from design to production with thermal simulation service
| NO. | Width(mm) | Height(mm) | Weight(kg/m) | Preview | Notes |
| WD-03547 | 80.000 | 21.000 | 2.000 |  |
|

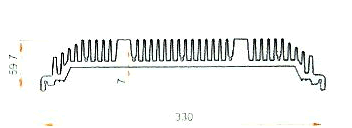

| WD-03548 | 330.000 | 59.700 | 15.100 |  |
|

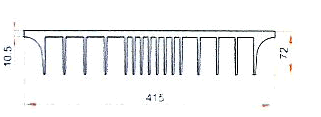

| WD-03549 | 415.000 | 72.000 | 23.300 |  |
|

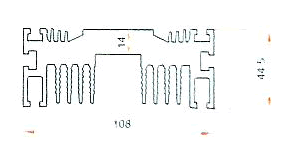

| WD-03550 | 108.000 | 44.500 | 6.400 |  |
|

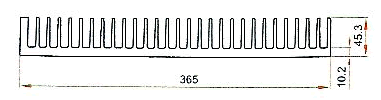

| WD-03551 | 365.000 | 45.300 | 20.700 |  |
|
| WD-03552 | 92.000 | 32.000 | 1.100 |  |
