Your Heat Sink Solution
Air cooling, water cooling from design to production with thermal simulation service
Air cooling, water cooling from design to production with thermal simulation service
| NO. | Width(mm) | Height(mm) | Weight(kg/m) | Preview | Notes |

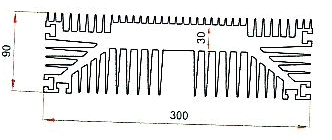

| WD-03535 | 300.000 | 90.000 | 33.500 |  |
|

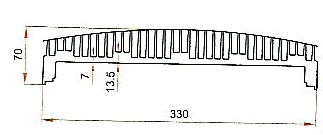

| WD-03536 | 330.000 | 70.000 | 16.000 |  |
|

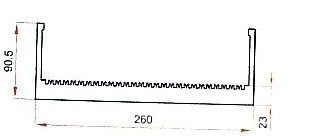

| WD-03537 | 260.000 | 90.500 | 17.000 |  |
|

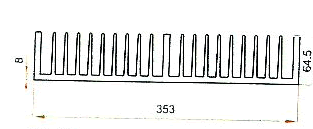

| WD-03538 | 353.000 | 64.500 | 23.100 |  |
|
| WD-03539 | 126.000 | 126.000 | 15.400 |  |
|
| WD-03540 | 126.000 | 127.000 | 15.800 |  |
