Your Heat Sink Solution
Air cooling, water cooling from design to production with thermal simulation service
Air cooling, water cooling from design to production with thermal simulation service
| NO. | Width(mm) | Height(mm) | Weight(kg/m) | Preview | Notes |

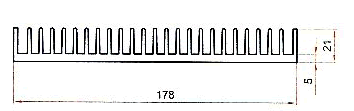

| WD-03301 | 178.000 | 21.000 | 4.900 |  |
|

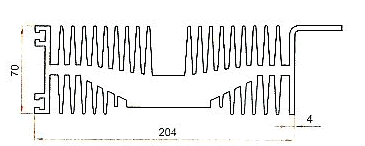

| WD-03302 | 204.000 | 70.000 | 20.200 |  |
|

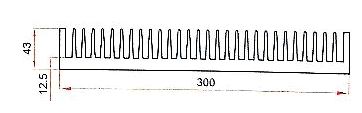

| WD-03303 | 300.000 | 43.000 | 18.600 |  |
|

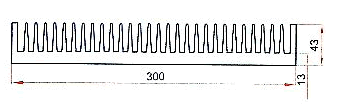

| WD-03304 | 300.000 | 43.000 | 19.500 |  |
|
| WD-03305 | 23.500 | 17.000 | 0.340 |  |
|

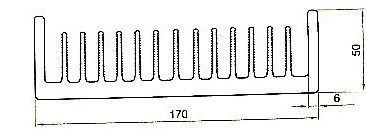

| WD-03306 | 170.000 | 50.000 | 8.900 |  |
