Your Heat Sink Solution
Air cooling, water cooling from design to production with thermal simulation service
Air cooling, water cooling from design to production with thermal simulation service
| NO. | Width(mm) | Height(mm) | Weight(kg/m) | Preview | Notes |

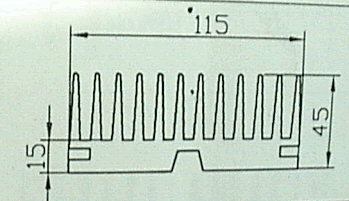

| WD-03241 | 115.000 | 45.000 | 7.370 |  |
|

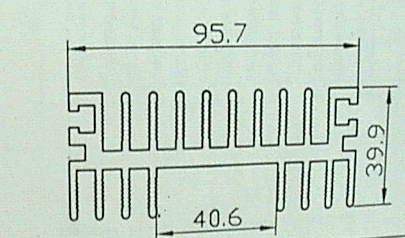

| WD-03242 | 95.700 | 39.900 | 3.770 |  |
|

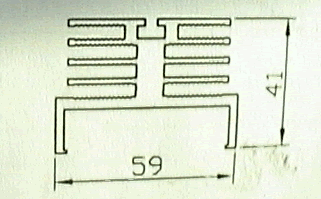

| WD-03243 | 59.000 | 41.000 | 2.110 |  |
|

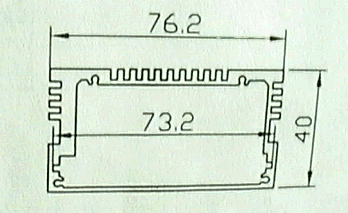

| WD-03244 | 76.200 | 40.000 | 1.830 |  |
|

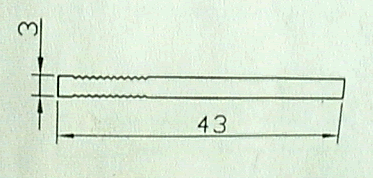

| WD-03245 | 43.000 | 3.000 | 0.340 |  |
|

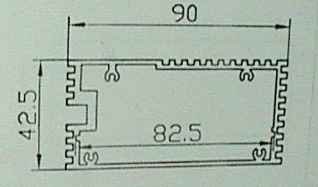

| WD-03246 | 90.000 | 42.500 | 1.990 |  |
