Your Heat Sink Solution
Air cooling, water cooling from design to production with thermal simulation service
Air cooling, water cooling from design to production with thermal simulation service
| NO. | Width(mm) | Height(mm) | Weight(kg/m) | Preview | Notes |

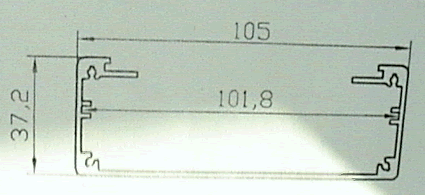

| WD-03163 | 105.000 | 37.200 | 1.220 |  |
|

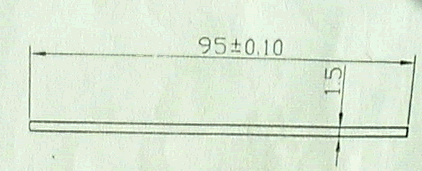

| WD-03164 | 95.000 | 1.500 | 0.385 |  |
|

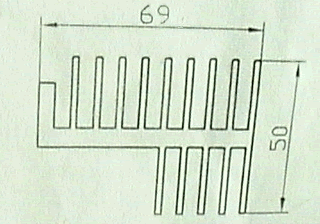

| WD-03165 | 69.000 | 50.000 | 2.970 |  |
|

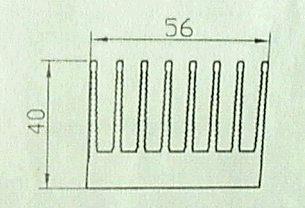

| WD-03166 | 56.000 | 40.000 | 3.020 |  |
|

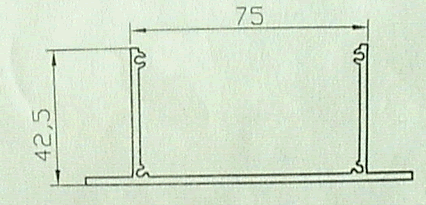

| WD-03167 | 75.000 | 42.500 | 1.250 |  |
|

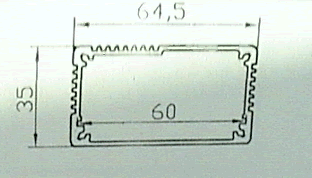

| WD-03168 | 64.500 | 35.000 | 0.000 |  |
