Your Heat Sink Solution
Air cooling, water cooling from design to production with thermal simulation service
Air cooling, water cooling from design to production with thermal simulation service
| NO. | Width(mm) | Height(mm) | Weight(kg/m) | Preview | Notes |

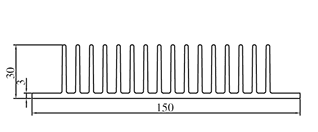

| WD-02473 | 150.000 | 30.000 | 3.850 |  |
|

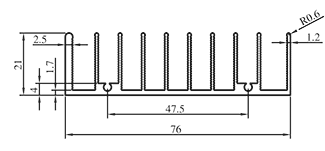

| WD-02474 | 76.000 | 21.000 | 1.000 |  |
|
| WD-02475 | 183.000 | 81.500 | 14.160 |  |
|

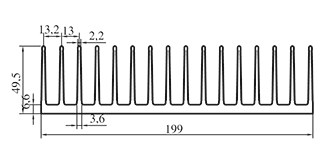

| WD-02476 | 199.000 | 49.500 | 8.452 |  |
|

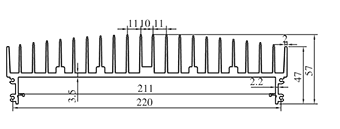

| WD-02477 | 220.000 | 57.000 | 5.772 |  |
|
| WD-02478 | 66.000 | 21.000 | 1.320 |  |
