Your Heat Sink Solution
Air cooling, water cooling from design to production with thermal simulation service
Air cooling, water cooling from design to production with thermal simulation service
| NO. | Width(mm) | Height(mm) | Weight(kg/m) | Preview | Notes |

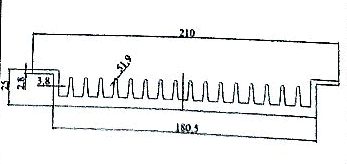

| WD-02233 | 210.000 | 25.000 | 5.500 |  |
|

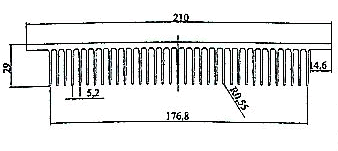

| WD-02234 | 210.000 | 29.000 | 5.370 |  |
|

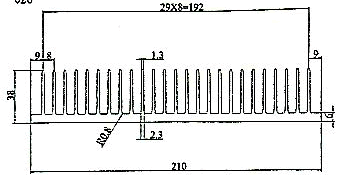

| WD-02235 | 210.000 | 38.000 | 7.360 |  |
|

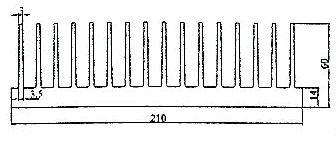

| WD-02236 | 210.000 | 60.000 | 13.900 |  |
|

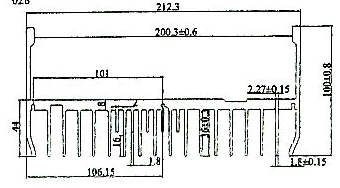

| WD-02237 | 212.300 | 100.000 | 9.400 |  |
|

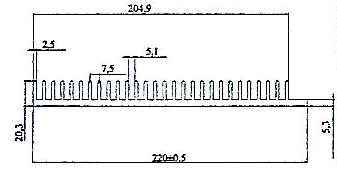

| WD-02238 | 220.000 | 20.300 | 5.850 |  |
